Walk into any workshop in Dubai, Abu Dhabi, or Sharjah, and you will find a caliper in the tool drawer. Sometimes it is an Insize digital caliper. Sometimes an Insize vernier caliper. Sometimes both. The question is not which one looks better or costs less. It is which one fits the work you actually do in your UAE workshop. This guide covers both tools from the ground up – what each one is, how it works, and exactly which situations call for which.

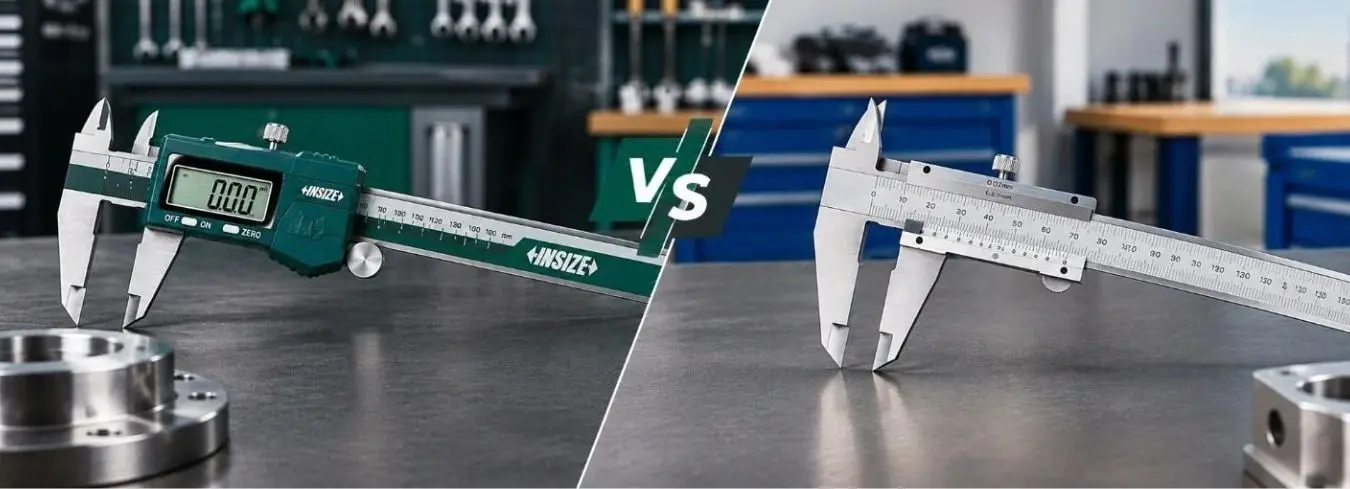

Insize Digital Caliper vs Vernier Caliper: What Is the Difference?
Factor | Insize Digital Caliper | Insize Vernier Caliper |
Reading method | LCD screen, instant | Mechanical scale, requires interpretation |
Resolution | 0.01 mm | 0.02 mm |
Accuracy | +/- 0.02 mm (150 mm range) | +/- 0.03 mm (150 mm range) |
Battery | CR2032 required | None |
Ease of reading | Any operator from day one | Requires training and correct technique |
Metric and imperial | One button toggle | Fixed per model |
Coolant and dust | IP-rated models available | Naturally resistant, no electronics |
Measurement range | 150 mm to 600 mm by model | 150 mm to 300 mm |
Both tools measure the same four things: external width or diameter, internal bore, depth, and step dimensions. Everything that differs happens after the jaws close.
What Is an Insize Digital Caliper?
The Insize digital caliper uses an electronic linear encoder built into the beam. When the jaws move, the encoder detects the position and displays the reading on an LCD screen. The number you see is the measurement. Nothing to interpret.
Insize makes several digital caliper series. Knowing the range helps you buy the right one:
- Insize 1108 is the standard stainless steel digital caliper used across most UAE workshops. Resolution: 0.01 mm, accuracy +/- 0.02 mm, SPC data output, metric and imperial toggle, DIN 862 certified. This is the everyday workhorse.
- Insize 1114 is the heavy-duty version with a zinc alloy housing for machine shops where the tool takes daily physical punishment. Available with or without a thumb roller for fine jaw adjustment.
- Insize 1196 is a heavy-duty 300 mm digital caliper for larger components – fabrication work, structural steel, and any job where 150 mm does not reach.
- Insize 1109 and 1119 both feature a round depth bar instead of a flat one. The round bar reaches into grooves and recesses where a flat depth bar cannot fit. Useful for maintenance teams working on equipment with tight access points.
- Insize 1115 is the IP67 waterproof series. Fully dustproof and rated for water immersion up to 1 metre for 30 minutes. For UAE machine shops running coolant, cutting oil, or heavy turning operations with carbide inserts, this is the only digital caliper model that holds up in those conditions without accuracy loss.
All models measure external, internal, depth, and step dimensions. All carry DIN 862 compliance and a manufacturer inspection certificate.
What Is an Insize Vernier Caliper?
The Insize 1205 is the main vernier caliper in the Insize range. No electronics. No battery. No display.
The main scale on the beam gives the whole millimetre value. The vernier scale slides alongside the jaw, and the operator identifies which graduation line on the vernier scale aligns with a graduation on the main scale. That aligned mark gives the fraction of a millimetre.
Resolution: 0.02 mm. Accuracy: +/- 0.03 mm on the 150 mm range. Available in 150 mm, 200 mm, and 300 mm.
Two things buyers often get wrong about vernier calipers:
A vernier caliper is not automatically more accurate than a digital one. The Insize 1108 digital has better resolution and better stated accuracy than the 1205 vernier. The vernier’s real advantage is mechanical reliability where electronics cannot work.
A vernier caliper is not automatically more durable. Both the 1108 digital and 1205 vernier are stainless steel construction. The vernier has no electronics to damage. That is the durability point, not the body material.
Digital vs Vernier Caliper: Which Is Easier to Read?
The digital caliper wins this without debate.
Open the jaws, place the workpiece, look at the screen. Done. No technique. No training. No parallax error from a slightly wrong viewing angle.
Reading a vernier scale requires three steps: read the main scale to the last whole millimetre, find which graduation on the vernier scale aligns with the main scale, add both values. Under time pressure or poor lighting, mistakes happen. Parallax error alone can add or remove 0.02 mm from the result, which is the full resolution of the scale.
For UAE workshops running multiple shifts with rotating operators, digital removes this error category entirely.
One honest point for the vernier: LCD displays can wash out in very bright direct sunlight. A vernier scale reads wherever you can see the graduations. For outdoor site work in UAE sun, this is worth knowing.
Accuracy vs Resolution: What UAE Buyers Must Understand
This is the most misunderstood point when buying any caliper, and it costs buyers money.
- Resolution is the smallest increment the display shows. Insize digital calipers show 0.01 mm.
- Accuracy is how close that display reading is to the true dimension. The Insize 1108 states +/- 0.02 mm accuracy. The actual part could be 0.02 mm different from what the screen shows.
Where buyers go wrong: a caliper displaying 0.01 mm resolution does not mean it measures to 0.01 mm accuracy. A budget digital caliper showing 0.01 mm may only achieve +/- 0.05 mm accuracy in practice if its encoder and jaw geometry are poorly made.
Before buying any Insize caliper, check all four of these:
- Resolution – what it displays
- Accuracy – what the manufacturer guarantees
- DIN 862 compliance – confirms accuracy is tested to an independent standard
- Manufacturer inspection certificate – confirms the individual instrument was verified
Insize calipers carry all four. A budget caliper with no stated standard and no certificate is a risk regardless of what its screen shows.
Which Insize Caliper Suits Different UAE Workshop Needs?
- Machine shops and CNC environments: The Insize 1114 heavy-duty digital handles the physical demands of a CNC machine shop better than a standard body. For coolant-heavy environments, the Insize 1115 IP67 is non-negotiable.
- Fabrication workshops: Most fabrication measurement – plate thickness, weld gap, tube diameter – does not need sub-0.02 mm precision. The Insize 1108 digital or 1205 vernier both work. The 1196 at 300 mm handles larger fabricated components.
- Maintenance teams: Maintenance jobs are unpredictable. One hour it is metric pipework, the next it is an inch-dimensioned American valve. The digital caliper’s metric and imperial toggle handles both with one tool. CR2032 batteries are in every UAE supermarket.
- Quality inspection under ISO 9001: Insize digital caliper models with SPC output transfer readings directly to connected software. No handwriting, no transcription errors. Vernier calipers have no data output. Every measurement must be recorded manually.
- Dusty or wet environments: Only the Insize 1115 IP67 digital or the Insize 1205 vernier are suitable. The vernier needs no electronics but the IP67 digital gives you the convenience of a digital display with equivalent environmental protection.
What to Check Before Buying an Insize Caliper in UAE
Go through this list before placing any order:
- Measuring range – 150 mm covers most general work. If parts exceed 150 mm regularly, specify 200 mm or 300 mm. Getting this wrong means the caliper cannot do the job.
- Accuracy and resolution – check both, separately. DIN 862 compliance confirms the accuracy is independently verified.
- Protection rating – coolant, oil, or UAE dust in your workshop? Only the Insize 1115 IP67 is rated for those conditions among the digital range.
- Battery – digital calipers need CR2032, lasting 6 to 12 months. For battery-free work, the Insize 1205 vernier is the only choice.
- Calibration – Insize calipers come with a manufacturer inspection certificate. ISO 9001 facilities need annual recalibration by a certified lab traceable to national standards.
- Depth bar type – flat depth bars are standard. If you measure grooves or tight recesses, specify the Insize 1109 or 1119 with a round depth bar.
When to Choose Insize Digital. When to Choose Vernier.
Buy the Insize digital caliper when:
- Speed and ease of reading matter across your whole team
- You handle both metric and imperial dimensioned equipment
- Your facility records measurements under ISO 9001 or any QC system
- Your environment has dust or coolant – choose the 1115 IP67 series
Buy the Insize vernier caliper when:
- Batteries are not acceptable – offshore, remote sites, field work
- Strong magnetic fields are present from welding, magnetic chucks, or induction equipment
- Your team is trained in vernier reading and has no SPC data requirement
- Budget is the primary constraint and tolerances are within +/- 0.03 mm
Common Caliper Buying Mistakes in UAE Workshops
- Price over specification. A budget digital showing 0.01 mm but achieving only +/- 0.05 mm accuracy is worse than a verified Insize caliper. The display means nothing without traceable accuracy.
- Confusing resolution and accuracy. These are two different numbers. Check both. Look for DIN 862.
- Wrong range. A 150 mm caliper cannot measure a 200 mm shaft. Confirm your maximum required measurement before buying.
- Ignoring IP rating. The Insize 1108 has no IP protection. The Insize 1115 has IP67. They are different products. Using an unprotected digital caliper in a coolant environment is a slow failure waiting to happen.
- Using a caliper where a micrometer belongs. Calipers measure to +/- 0.02 mm under real conditions. If your tolerance is tighter than that, a micrometer is the correct tool. No caliper – Insize or otherwise – reliably measures a 0.005 mm tolerance on a workshop floor.
Quick Buying Guide: Insize Digital Caliper vs Vernier Caliper
Your situation | Recommended Insize model |
General workshop, daily use | Insize 1108 digital caliper |
Machine shop, heavy use | Insize 1114 heavy duty digital |
Coolant or dusty environment | Insize 1115 IP67 digital caliper |
Large parts over 150 mm | Insize 1196 heavy duty 300 mm digital |
Grooves and recessed depth | Insize 1109 or 1119 round depth bar digital |
Battery-free or field use | Insize 1205 vernier caliper |
ISO 9001 with SPC data output | Insize 1108 or 1115 with SPC connection |
Tolerance tighter than 0.02 mm | Micrometer – caliper is not suitable |
Final Word
The right caliper is not the most expensive one or the most technical one. It is the one that fits how your team works, what materials you measure, and what your environment demands. For most UAE workshops, the Insize digital caliper answers all three. For the ones it cannot, the vernier does.
Get that decision right and the rest takes care of itself. For genuine Insize calipers in UAE and the full range of measuring instruments in Dubai, visit arhtrd.com.
Is an Insize digital caliper better than a vernier caliper?
For most UAE workshops, yes. It reads faster, more accurately in practice, with less operator error. The vernier is better only where electronics genuinely cannot be used.
Are Insize digital calipers accurate?
Yes. DIN 862 compliant, +/- 0.02 mm accuracy on 150 mm models, with a manufacturer inspection certificate on every unit.
Does an Insize digital caliper need a battery?
Yes, a CR2032. Typical life is 6 to 12 months. For battery-free use, choose the Insize 1205 vernier.
Which Insize caliper suits a UAE workshop?
Insize 1108 for general use. Insize 1115 IP67 for coolant or dusty environments. Insize 1114 for heavy machine shop work.
What size Insize caliper should I buy?
150 mm covers most workshop measurement needs. Choose 200 mm or 300 mm if your work regularly involves larger components.
Can an Insize caliper measure depth?
Yes. All Insize calipers include a depth bar. The 1109 and 1119 models have a round depth bar for better access in grooves and recesses.
Where can I buy genuine Insize calipers in the UAE?
From authorised Insize distributors in UAE. Authorised sources supply genuine products with manufacturer inspection certificates and proper calibration support.
